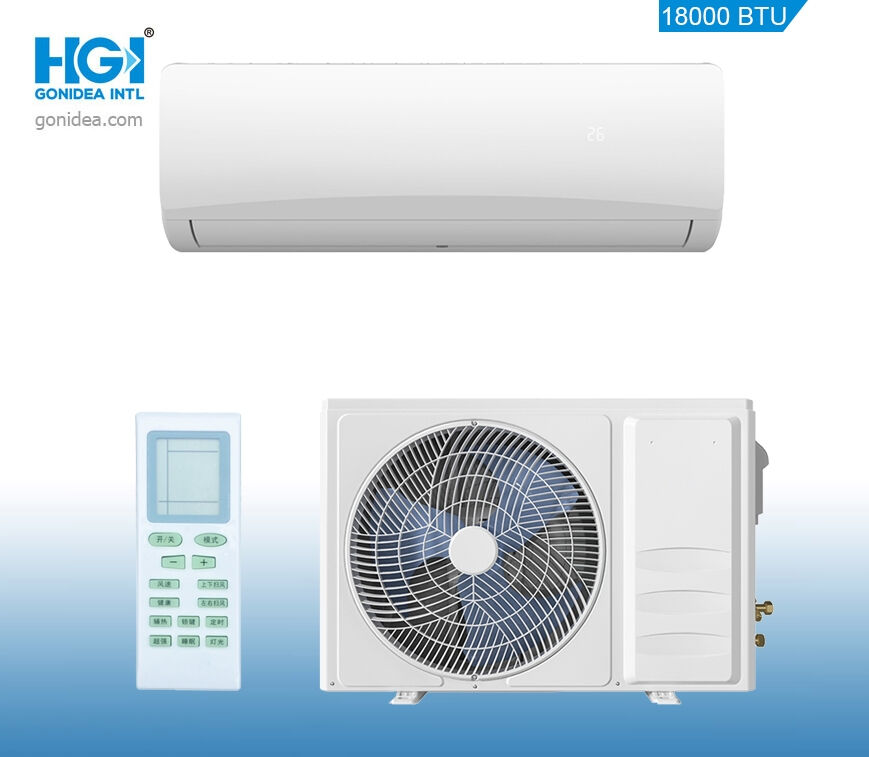

Fashionable Wall Mounted Air Conditioner Series 18000BTU Low-Power Operation Inerter Frequency Air Conditioner Sp/J-Bp50CH
  • Fashionable Wall Mounted Air Conditioner Series 18000BTU Low-Power Operation Inerter Frequency Air Conditioner Sp/J-Bp50CH
  • Fashionable Wall Mounted Air Conditioner Series 18000BTU Low-Power Operation Inerter Frequency Air Conditioner Sp/J-Bp50CH
  • Fashionable Wall Mounted Air Conditioner Series 18000BTU Low-Power Operation Inerter Frequency Air Conditioner Sp/J-Bp50CH
  • Fashionable Wall Mounted Air Conditioner Series 18000BTU Low-Power Operation Inerter Frequency Air Conditioner Sp/J-Bp50CH
Fashionable Wall Mounted Air Conditioner Series 18000BTU Low-Power Operation Inerter Frequency Air Conditioner Sp/J-Bp50CH

Fashionable Wall Mounted Air Conditioner Series 18000BTU Low-Power Operation Inerter Frequency Air Conditioner Sp/J-Bp50CH

Certificación CE, CCC, RoHS, GS, CB
Detalles del producto
Modelo NO.:
SP/J-BP50CH
Uso:
Habitación
Ruido de la máquina interior:
45/42/39/37
Estándar de eficiencia energética de China:
Nivel 2
Refrigeración/Calefacción:
Sólo refrigeración
Fuente de energía:
Eléctrico
Tipo de energía:
corriente continua
Condición:
Nuevo
Fuente de alimentación nominal:
1pH/220-240V/50Hz
Rango de temperatura de acción:
-7℃-43℃
Paquete de transporte:
Caja de cartón
Especificación:
R410A
Marca:
HGI
Origen:
Porcelana
Código HS:
8415102100
Capacidad de producción:
500000/PCS por año
Resaltar:

Wall mounted air conditioner 18000BTU

,

Inverter frequency air conditioner low-power

,

Wall hanging air conditioner with warranty

Pago y términos de envío
Cantidad de orden mínima
100
Precio
280
Descripción del producto
Fashionable Wall Mounted Air Conditioner Series 18000BTU Low-Power Operation INERTER Frequency Air Conditioner  SP/J-BP50CH
Product Description

DC INVERTER SP/J-BP26CH SP/J-BP35CH SP/J-BP50CH SP/J-BP70CH
Rated Power supply  1Ph / 220-240V/50Hz 1Ph / 220-240V/50Hz 1Ph / 220-240V/50Hz 1Ph / 220-240V/50Hz
Workable Power supply 1Ph / 150-260V/50Hz 1Ph / 150-260V/50Hz 1Ph / 160-260V/50Hz 1Ph / 160-260V/50Hz
Cooling Capacity  (btu/h) 9000 12000 18000 24000
Capacity  (W) 2500(150~3000)W 3200(150~3500)W 4800(1250-5910) 6810(1830~7800)
Input  (W) 900(100~1200)W 1280(75~1560)W 1780(330-2340) 2350(410~2830)
Rated current  (A) 4.0 (0.8~5.3)A 5.7(0.5~6.9)A 7.9(1.7~12.0) 10.5(2.3~12.3)
EER 2.78  2.50  2.70  2.90
Heating Capacity  (btu/h) 9000 12000 18000 24000
Capacity  (W) 2800(150~3300)W 3300(150~3700)W 4800(1250-6070) 6870(1850~7900)
Input  (W) 960(75~1260)W 1260(75~1580)W 1670(340-2520) 2240(420~3000)
Rated current  (A) 4.3(0.5~5.6) 5.6(0.5~7.0)A 7.5(1.7~13.0) 10.0(2.3~13.5)
COP 2.92  2.62 2.87  3.07
Max. input consumption   (W) 1600  1720  2520  3100
Max. current  (A) 8.50  9.00  13.00  14.80
Compressor Type Rotary Rotary Rotary Rotary
Brand GMCC,GREE GMCC GMCC GMCC
Indoor unit  Indoor Coil  Fin material Golden& hydrophilic& Golden& hydrophilic& Golden& hydrophilic& Golden& hydrophilic&
Tube outside dia.and material φ7mm, Inner Grooved φ7mm, Inner Grooved φ7mm, Inner Grooved φ7mm, Inner Grooved
Indoor air flow (Turbo/Hi/Mi/Lo)  (M3/h)  500/450/370/320 550/500/450/370 850/750/650/580 1050/950/800/680
Rated input Power(cooling/heating)  (W) 30 30 35 45
Rated current  (cooling/heating)  (A) 0.2 0.2 0.35 0.4
Moisture Removal  (KG/h) 0.8 0.8 2 2.6
Noise level(Turbo/Hi/Mi/Lo)  (dB(A)) 39/34/32/30 42/39/36/33 45/42/39/37 49/47/45/42
Unit dimension (W*H*D) 695×275×190 780×275×190 910×295×205 1075×330×240
Packing (W*H*D) 763×322×241 847×322×241 975×340×255 1146×412×318
Net weight  (KGs) 6 7 10 14
Gross weight  (KGs) 8 9 12 18
Outdoor unit  Outdoor coil Fin  material Golden& hydrophilic& Golden& hydrophilic& Golden& hydrophilic& Golden& hydrophilic&
Tube outside dia.and material φ7mm, Inner Grooved φ7mm, Inner Grooved φ7mm, Inner Grooved φ7mm, Inner Grooved
Noise level  (dB) 50 52 55 59
Unit dimension (W*D*H)   (mm) 710×295×495 710×295×495 760×305×550 780×350×600
Packing   (W*D*H)  (mm)  818×328×530 818×328×530 869×339×588 896×387×625
Net weight  (KGs) 20 21 24 30
Gross weight  (KGs) 23 24 28 34
Refrigerant type R410A / 520g R410A / 560g R410A / 770g R410A / 1070g
Refrigerant pipe Liquid side  (mm) Φ6 Φ6 Φ6 Φ6
Gas side  (mm) Φ9 Φ9 Φ12 Φ15.88
Max. refrigerant pipe length (m)  10 10 10 15
Max. difference in level  (m)  5 5 5 10
Operation temperature range  -7ºC-43ºC -7ºC-43ºC -7ºC-43ºC -7ºC-43ºC
Ambient temperature range  -7ºC-48ºC -7ºC-48ºC -7ºC-48ºC -7ºC-48ºC
Application area   (MM2)  10~17 13~27 20~40 30~55
Sets per 40ft HQ/20ft   40HQ/20 340/- 334/143 267/- 186/81
